Λεπτομέρειες:
|
| Μέγεθος: | 41 * 70,1 mm | Υλικό: | Ανοξείδωτο Ατσάλι |
|---|---|---|---|
| Τύπος στερέωσης: | Με νήματα | Αντίσταση: | Στους 20℃ 4Ω±10% |
| Ονομαστική Τάση: | DC24V | Σκοπός: | ρυμούλκηση |
| Curren: | 0.85A | Επίπεδο Insulaiton: | ΚΛΑΣΗ Η (180°) |
| Περιοχή θερμοκρασίας: | -5°C-45°C | Τύπος υλικού: | Ελαφριά μαγνητικά υλικά |
| Χρήση προϊόντος: | ρυμούλκηση | Τύπος: | Ηλεκτρομαγνητικά |
| Χρώμα: | Ασημένιο | Μέγεθος θύρας: | Προσαρμοσμένο |
| Αντίσταση μόνωσης: | 50MΩ MIN, DC500V | Ισχύς: | Κτύπημα DC12V 5mm, τουλάχιστον 500gf |
| Αβιέντ Τεμπ: | -5°C-45°C | Τάση Λειτουργίας: | DC6 V |
| Αποστολή: | DHL UPS FEDEX EMS | Σχετική υγρασία: | 2% έως 85% RH |
| Μόνωση resistanc: | 50MΩ MIN, DC500V | Ενημέρωση: | - Όχι. |
| Ένταση: | > 400gf | ΟΜ: | - Ναι, ναι. |
| Βιομετρικό: | Η διάρκεια ζωής της δοκιμής είναι 50.000 φορές | Διάρκεια Ζωής: | Πάνω από 500.000 κύκλοι |
| Specification | |||
| Brand | Dason | Product Name | Push Pull Solenoid |
| Model | U1879 | Voltage | DC 24V |
| Power | 9-90W | Force | 0-25N |
| Waterproof Class | IP65 | Duty Cycle | 10%-100% |
| Stroke | 0-15mm | Material | steel & enamelled wire |
| Action Form | Push Pull | Thread Size | Custom |
| Install style | Screw | Deepth(mm) | / |
| Hi-Pot Test | AC 600V 50/60 Hz 2s | Insulation Class | B |
| Packaging Details | |||
| Body Size | L64*W38*H30(mm) | Packing Box Size(Standard) | 35*31*18(cm) accept custom |

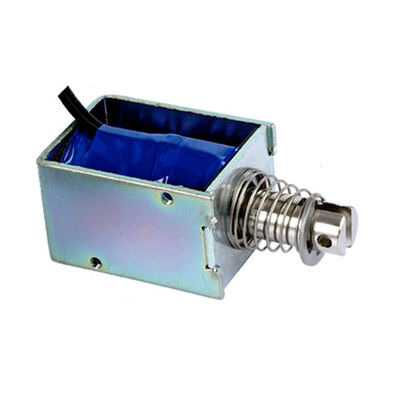

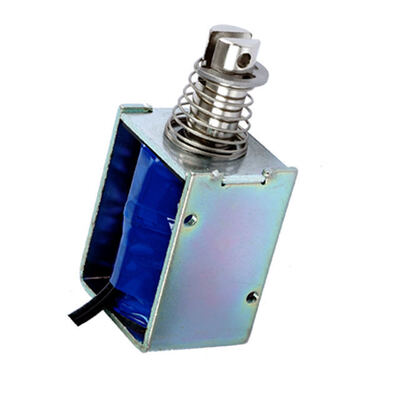

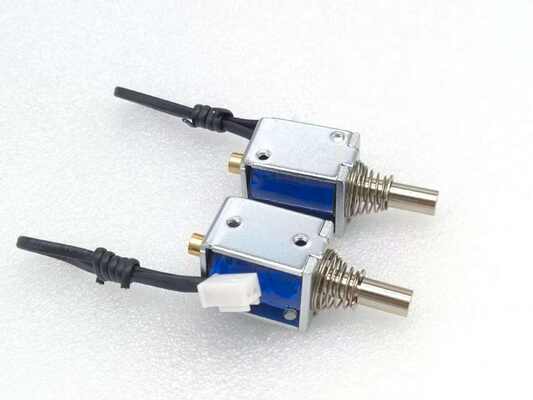

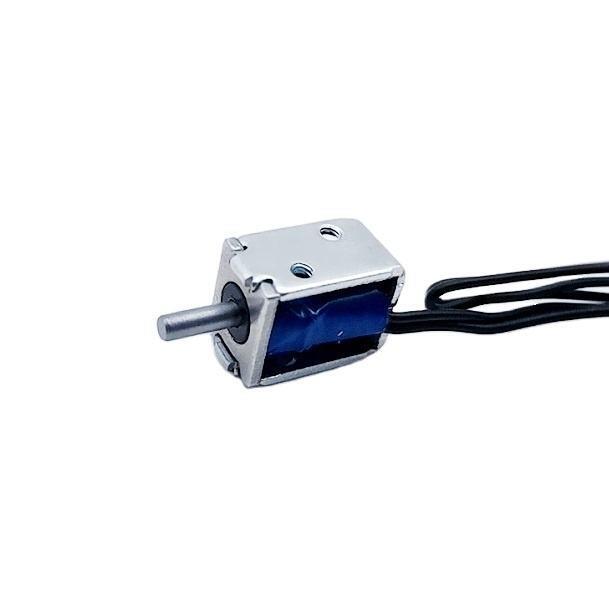

Push Pull Solenoid
1. Push and pull type optional, linear motion, stroke optional, plunger spring reset (also you can choose not) , Dc power supply, Mini size, standard model voltage have 6v/12v/24v optional, we can custom the voltage as you need.
2.The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.
3. The push pull mini frame solenoid are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.
4. Open frame structure with mounting holes, accepted custom as you needed.
| Our Product | circular holding electromagnet, square holding electromagnet, open frame solenoid, tubular solenoid, keep solenoid, electromagnet lock, solneoid lock |
| MOQ | 2 pcs, small orders can be acceptable if we have stocks of this product |
| Packaging | carton, customize according your requirement |
| Delivery Time | shipped in 5-20 days after payment (decided by the order quantity and stock) |
| Supply Ability | 5000 pcs per week |
| Payment Terms | T/T, paypal, etc. |
| Shipping | sea freight, air freight, express (DHL, UPS, FEDEX, EMS and etc. ) |
Q: Are tiy trading company or manufacturer?
A: We are original factory.
Q: How to choose a solenoid/electromagnet?
A: Following parameters should be provided: voltage(DC/AC), power, current, resistance, stroke, force,dimension limit, force, residual force, duty cycle and etc.
Q: How long is your delivery time?
A: Generally is 3-10 days if the goods are in stock and sometimes need 15-20 days if goods are not in stock. It also depends on the order quantity.
Q: What is terms of payment?
A: If payment <= $1000, it would need 100% payment in advance and it can be 50% payment in advance if payment > $1000.
Q: Is there any extra charges if we want you to print our logo or company name on your products or packaging?
A: Threre's no extra fee. Please offer us the logo files and we'll make it well on your peoduct.
